  • IMX307 1080P 60fps hd monitoring USB intelligent vending machine camera module

  • IMX307 1080P 60fps hd monitoring USB intelligent vending machine camera module

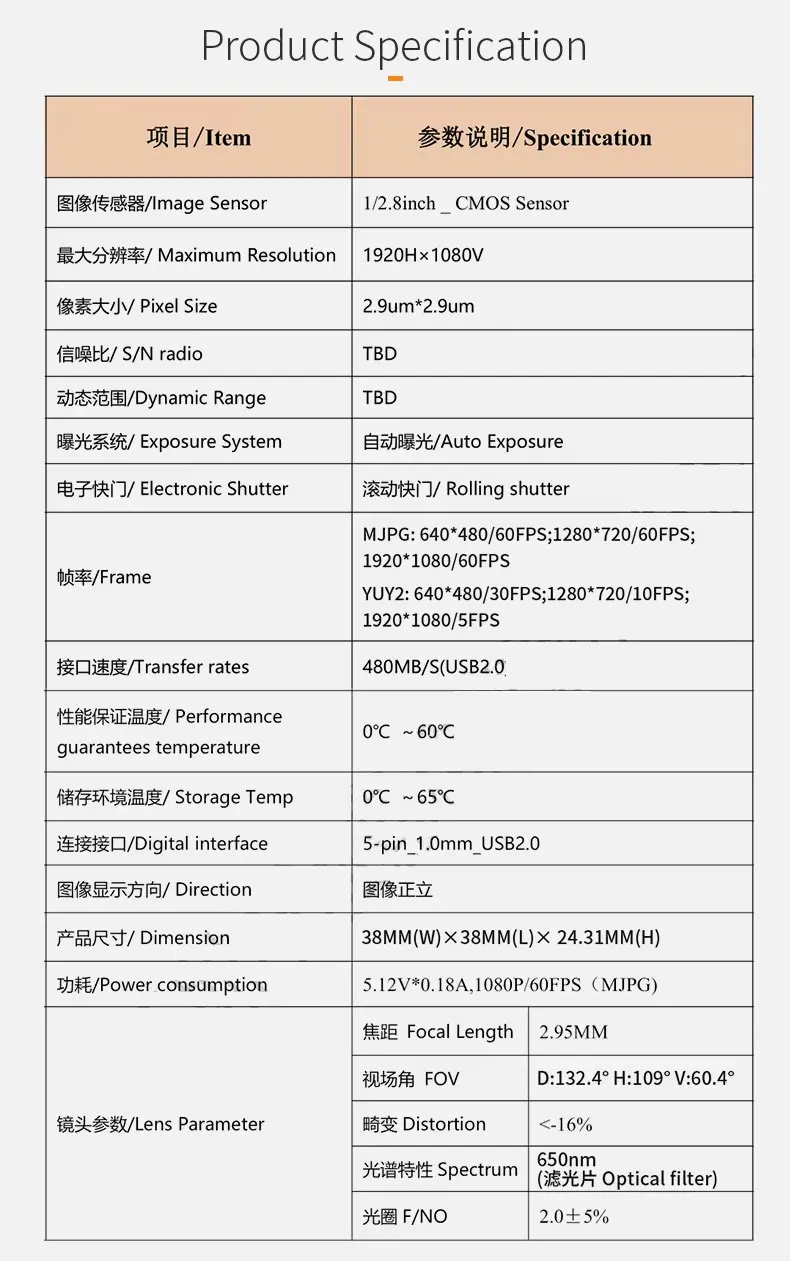

    Model：QQSJ-9018
    Applications: Facial recognition, monitoring, smart home，Vehicle monitoring and law enforcement equipment
    Function: Support Wide Angle/Lens optional；High speed 60 frame video capture
    Video Compression Format: Mjpg、YUV
    Customized support: OEM, ODM
    Image Sensor: Sony IMX307

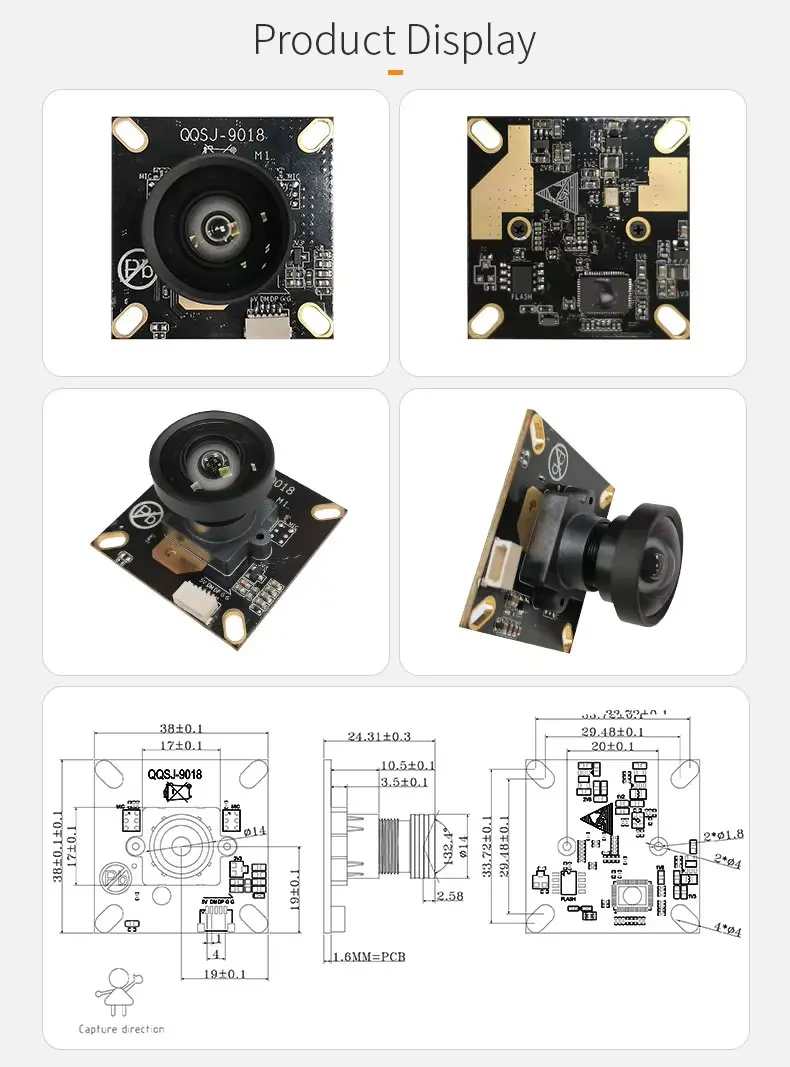

    Module Dimensions: 38x38mm（PCB）
    HD: 2MP 1080P
    Interface: USB2.0  free drive  plug&play
    Pixel: 2MP（1920x1080）
    Frame rate: 1080P@60fps
    Lens Size: 1/2.8 inch
    System compatible: Windows Android Linux
    Certification: RoHS

    • 0.00
      0.00
Product Description

Model：QQSJ-9018
Applications: Facial recognition, monitoring, smart home，Vehicle monitoring and law enforcement equipment
Function: Support Wide Angle/Lens optional；High speed 60 frame video capture
Video Compression Format: Mjpg、YUV
Customized support: OEM, ODM
Image Sensor: Sony IMX307
Module Dimensions: 38x38mm（PCB）
HD: 2MP 1080P
Interface: USB2.0  free drive  plug&play
Pixel: 2MP（1920x1080）
Frame rate: 1080P@60fps
Lens Size: 1/2.8 inch
System compatible: Windows Android Linux
Certification: RoHS

SUPPORT CUSTOMIZATION
Place of OriginGuangdong, China (Mainland)
Image SensorCMOS
Pixel0.2MP - 48MP，also could do according to customer's specific requirements
Applicationsface recognition, biometrics, living body detection, AI machine vision, vehicle, UAV, self-service terminal,
picture transmission,bar code scanning, infrared detection, smart home, security monitoring,
motion camera, industry and other fields
InterfacelUSB USB2.0 USB3.0 MIPI CSI CSI2 DVP
Chip brandIMX、Omnivision、Gokway、ON、Micron etc.
FeatureLow illumination，Global exposure，Starlight， Super Starlight，Wide dynamic HDR，JPEG,YUV
QQSJ-9018IMX307 1080P 60fps hd monitoring USB intelligent vending machine camera module
