    V39M G1 Board+ PTZ camera module +wifi board

    SOC/DSP main control: iCatch V39M
    Image sensor: OV OS12D40
    Video resolution: 4K 3840*2160 60/50/48/30/25/24p 2.7K 2704*1520 60/50/48/25/24p 1080P 1920*1080 120/60/50/48/30/25/24p
    Photo resolution: 11 million
    Storage card: 4GB-512GB(Class10/U1/U2/U3)
    Anti-shake function: PTZ anti-shake +EIS anti-shake
    USB function: USB read card data, USB camera, USB multiplex Uart serial port
    WiFi function: Support 2.4G OR 5G
    HDMI output: Optional
    Display: Optional
    TV-OUT: (CVBS) Supports TV-OUT output
    PCB board size: 38*38mm
    Audio: Supports the recording function


    • 0.00
      0.00
Product Description

V39M G1 Board+ PTZ camera module +wifi board

SOC/DSP main control: iCatch V39M
Image sensor: OV OS12D40
Video resolution: 4K 3840*2160 60/50/48/30/25/24p 2.7K 2704*1520 60/50/48/25/24p 1080P 1920*1080 120/60/50/48/30/25/24p
Photo resolution: 11 million
Storage card: 4GB-512GB(Class10/U1/U2/U3)
Anti-shake function: PTZ anti-shake +EIS anti-shake
USB function: USB read card data, USB camera, USB multiplex Uart serial port
WiFi function: Support 2.4G OR 5G
HDMI output: Optional
Display: Optional
TV-OUT: (CVBS) Supports TV-OUT output
PCB board size: 38*38mm
Audio: Supports the recording function


Product overview The combination solution is equipped with the iCatch V39M camera motherboard, OS12D40 three-axis anti-vibration head camera module ‍‍‍, AP6255 Wifi board, using a board to board socket connection, can also use a very thin coaxial line connection, convenient for various installation scenarios. Equipped with iCatch V39M‍ chip, the maximum support 4K@60FPS, 4K@30FPS, 1080P@120FPS H.264 encoding video. The OV OS12D40 color image sensor is a high-performance CMOS 1/2.49 "image sensor that can provide 11.3 megapixel (4512x2512) image signals at up to 60fps. The pixels are 1.404μm x 1.404μm. Used with G1 board, it can support 11M pixel HD image shooting, up to support 4K@60fps(difference), 4K@30fps video shooting. Use the ICM-40607 gyroscope. Supports up to 512GTF memory cards. Battery powered. Equipped with AP6255 single-pass dual-band WiFi module, it supports the use of single-band 2.4G or 5G wireless wifi function. Onboard support HDMI, WiFi antenna, WiFi button (C button), display screen, touch screen, CVBS (TV-Out), serial port (Uart3), etc. Supports network port, Bluetooth, audio interface, PWM and other extension interfaces. The PCB board size is 38*38mm. V39M camera motherboard + three-axis anti-shake head camera module +Wifi board) combination solution, suitable for handheld pinion camera, aerial camera, anti-shake head camera, USB camera, wearable camera, work recorder, industrial camera and other video camera products.
Note
Newly upgraded 25mm telephoto lens, the shooting lens is farther and the effect is better. The 15mm lens is shipped by default, if you need a 25mm lens, please contact the product manager.

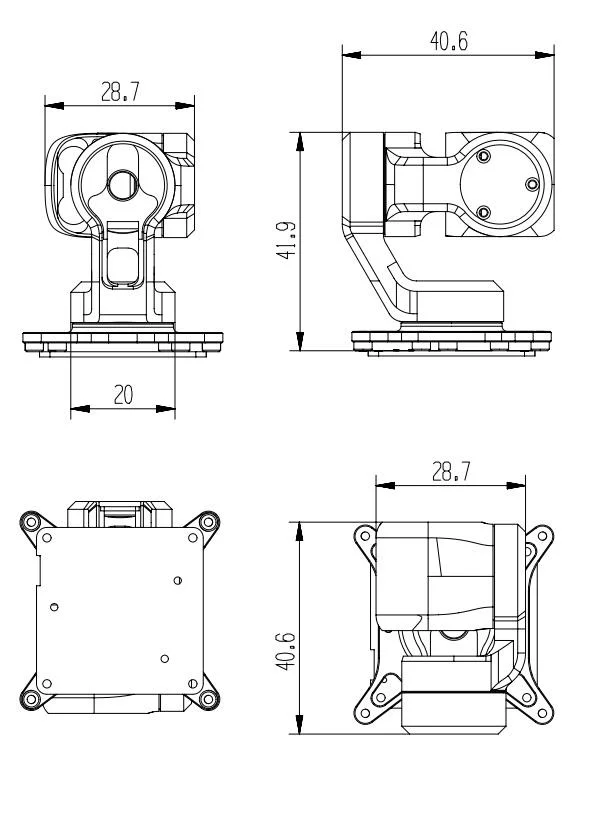

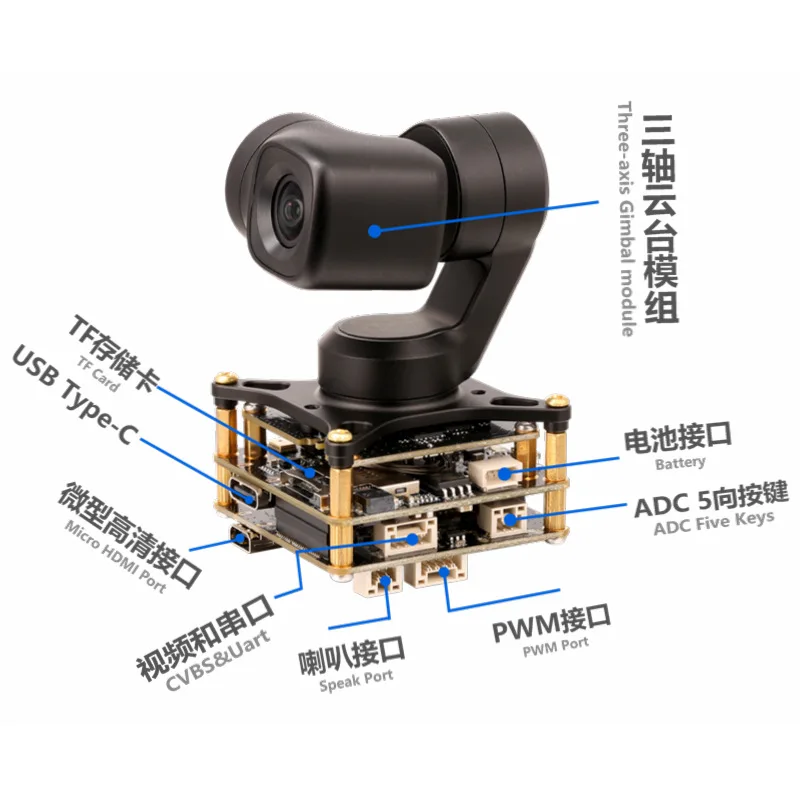

Interface Description :1: USB Type-C interface:This interface supports USB standard 5V power input, which can power the motherboard and charge the battery (recommended 7.7V battery). Connect to the computer can directly read the TF card files, as a U disk. It can also be used as a PCCAM USB camera. In the USB interface retains a camera control serial port UART3 and a camera debugging serial port UART1 (serial port function can be used with G1-USB serial debugging board). USB flash disk mode: Insert the TF card and connect the other end of USB to the computer, it will enter the USB flash disk mode automatically after power on by default. PCCAM mode: Insert the TF card, connect the other end of USB to the computer, it will enter the USB flash disk mode automatically after powering on the computer, and then press the power button to switch to the PCCAM camera mode. (Right-click on the computer "Computer", in the pop-up box, click the left button to enter the "Management", "Device Manager", you can see the "Image" in the "Device". In "Devices", you can see the name of the recognized camera Wasintek camera. (Open the camera tool "amcap.exe" to see the preview screen of the current device). Charge the battery: Use the power adapter (5V2A recommended) to charge the battery of the machine, the red light is always on during the charging process, and the green light is always on when fully charged.2: Micro HD interface:Through the display interface can be connected to the specified display and touch screen, using Micro HDMI interface output, up to support 4K 30FPS video signal output.3: Use battery power supply::6.6V (low power off) ~ 8.8V, recommended 7.7V high voltage high density battery. (Special note: the highest support for 12V access, access to non-7.7V type battery power supply, can not use the USB interface charging)4: Video and serial port:.Can support one way analog video CVBS (TV-OUT) signal output, reserved RX3, TX3, you can set up and control the camera through this serial port and other operations. One way ADC button interface, can be connected to up, down, left, right, confirm five buttons.5: Speaker interface::External speaker interface, can support external 0.4W speaker or connect the speaker by replacing the device.6: PWM interface::Through the above interface leads to the 3PIN standard PWM interface and 1PIN audio output APWMP interface, you can use this interface to control the camera mode switching, photo, video and other functions.
