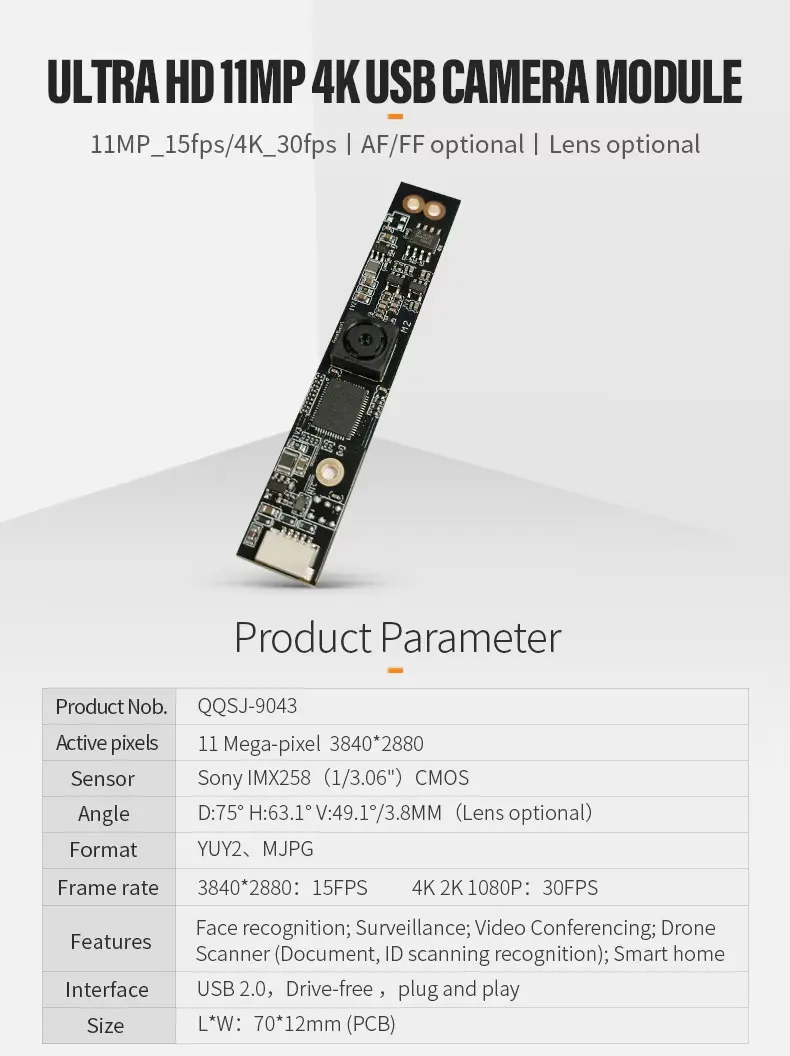

  • 11Megapixel HD Camera Module IMX258 4K Live Streaming Hi-Fi Document Recognition

  • 11Megapixel HD Camera Module IMX258 4K Live Streaming Hi-Fi Document Recognition

    Model: QQSJ-9043
    Applications :Face Recognition, 4K live webcam; online class teaching; video conferencing; laptop, etc.

    Features: Wide Angle, Lens option; With MIC video intercom；fixed-focus/Aotu-focus optional,
    Video Compression Format: YUV422, MJPG
    Customized support: OEM, ODM
    Image Sensor: CMOS, IMX258
    HD: 4K/2K 1080P
    Pixel: 11MP  3840*2880
    Frame rate：11MP：15fps   4K 2K 1080P：30fps
    Lens Size: 1/3.06"

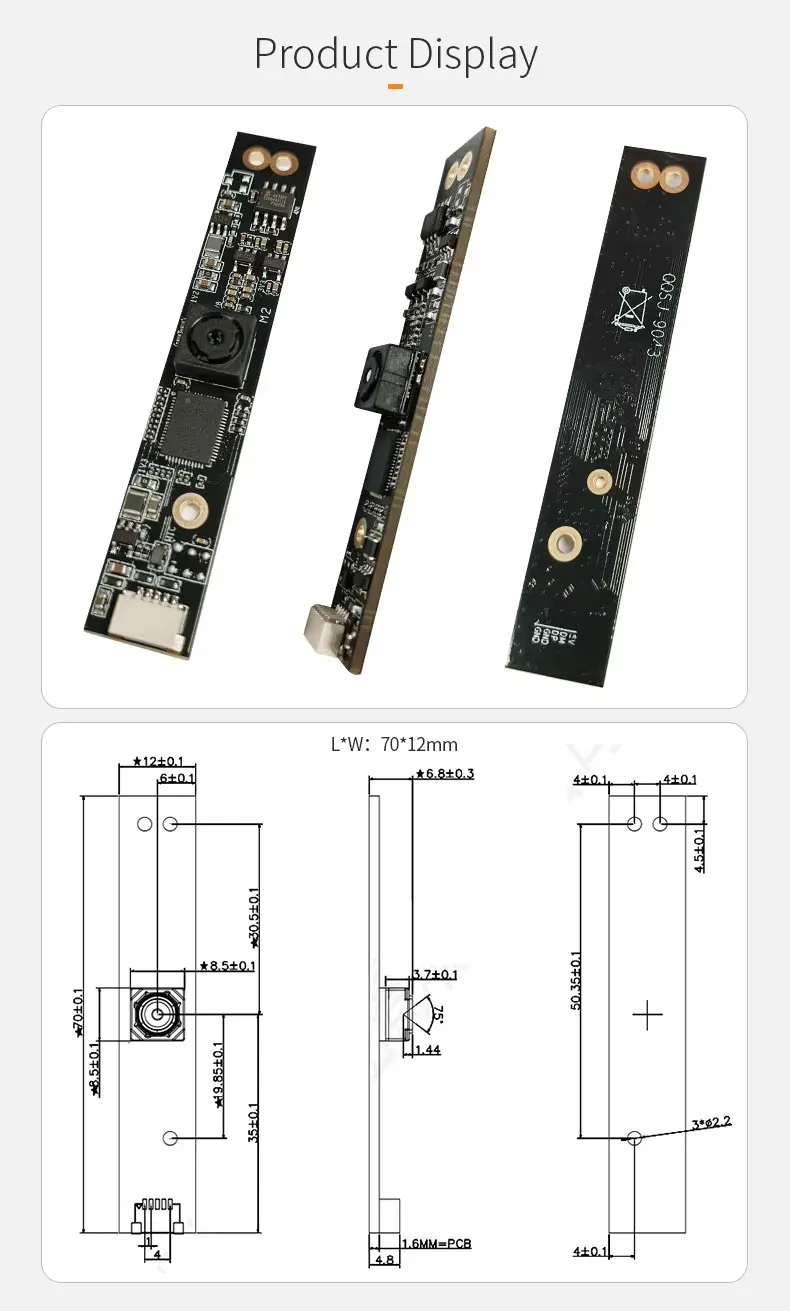

    Module Dimensions: 70*12mm（L*W）PCB
    System compatible: Windows Android Linux
    Certification: RoHS
    Interface: USB2.0 plug & play

    • 0.00
      0.00
Product Description

Model: QQSJ-9043
Applications :Face Recognition, 4K live webcam; online class teaching; video conferencing; laptop, etc.

Features: Wide Angle, Lens option; With MIC video intercom；fixed-focus/Aotu-focus optional,
Video Compression Format: YUV422, MJPG
Customized support: OEM, ODM
Image Sensor: CMOS, IMX258
HD: 4K/2K 1080P
Pixel: 11MP  3840*2880
Frame rate：11MP：15fps   4K 2K 1080P：30fps
Lens Size: 1/3.06"
Module Dimensions: 70*12mm（L*W）PCB
System compatible: Windows Android Linux
Certification: RoHS
Interface: USB2.0 plug & play

SUPPORT CUSTOMIZATION
Place of OriginGuangdong, China (Mainland)
Image SensorCMOS
Pixel0.2MP - 48MP，also could do according to customer's specific requirements
Applicationsface recognition, biometrics, living body detection, AI machine vision, vehicle, UAV, self-service terminal,
picture transmission,bar code scanning, infrared detection, smart home, security monitoring,
motion camera, industry and other fields
InterfacelUSB USB2.0 USB3.0 MIPI CSI CSI2 DVP
Chip brandIMX、Omnivision、Gokway、ON、Micron etc.
FeatureLow illumination，Global exposure，Starlight， Super Starlight，Wide dynamic HDR，JPEG,YUV
QQSJ-904311Megapixel HD Camera Module IMX258 4K Live Streaming Hi-Fi Document Recognition
